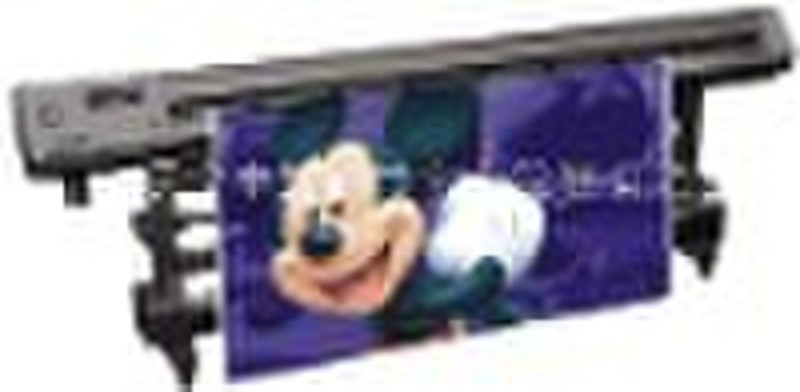

Large Format Printer: SK 1600(6COLORS)

ZY SEIKO SERIES LARGE FORMAT SOLVENT PRINTER: Adopting Seiko SPT printheads. Locating mode is combined with DC motor and raster. This kind of printer is widely used for outdoor printing.It will be your first choice of High-speed & High-resolution printer for its 1440 DPI resolution and 90m2/h speed. Above printing speed is at the basis of seiko 510(180x180 dpi) printheads or Xaar 500 (180x180 dpi) printheads .The printer also can adopt seiko 255 printheads but the printing speed will decrease half. The print color is alterable according to the quantity of printheads. Configuration below is according to different models: Motor: Japanese Panasonic, Fuji AC servo motor; Rail:Japanese THK,Tawinese HWIN; Heating system:front&back double heating; Feed-in&take-up system:IR controlled auto feed-in&take-up system; Printhead cleaning system: positive pressure, vaccum Ink system:German KNF ink supply system,Japanese negative pressure system. Name1600(6COLORS)ClassZY-SK seriesPrint technologyDrop-on-demand Piezo electricPrinthead8/12(spt510/255)Print width1.6MResolution1440dpi maxSpeed2pass 48m/h;4pass 32m/h;6pass 20m/hLocating modeRaster /servoColorCMYK LC LMMedia width1.6MMedia handlRoll to rollMedia typesFlex banner,vinyl sheet,one way vision,mesh,PVC fabrics,paper,etcInkSolvent/two-year outdoor lifetimeFile formatTIFF,JPEG,Postscript 3,EPS,PDFWorking processPrintmon software for windows xpRipPhotoprint /maintopPower supply50hz/60hz 220v(10%)20AOperation environmeng(Tempperature )18-26(Humidity )40%-70%Dimesion2.8m*0.7m*1.4mWeight350Kg/450Kg
